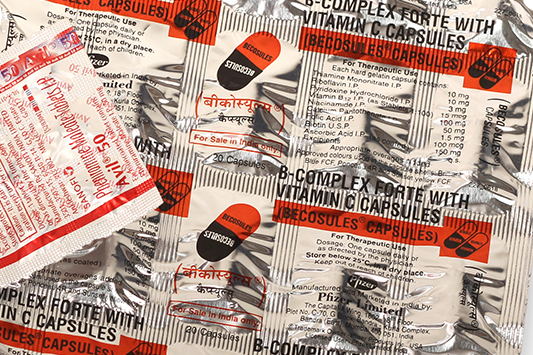

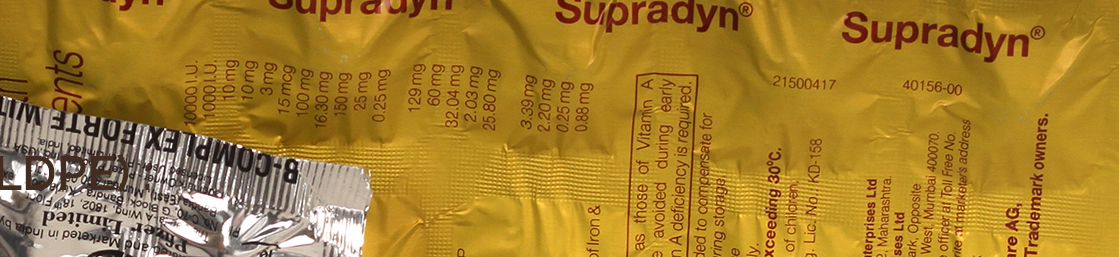

Aluminium Strip Foil :

Alminium Strip foil is an excellent barrier to moisture, vapour and gases. It completely blocks the passage of light and entry of unwanted odours. Each Tablet is individually protected.

We offer both un-printed and printed strip foil as per customers requirements in Foil/LDPE and Foil/HSL structures.

Standard Specifications of Aluminium Strip Foil (Foil / LDPE) :

Composition of Aluminium Foil :

Thickness of Aluminum Foil( in mm ,in micron ) : 0.030 , 30 0.040 , 40
Thickness Tolerance ( +/-8%): in mm +/- 0.0024 +/- 0.0032
Al. Foil weight (gsm) Pinholes in Al. (no/sqm) max. 81(+/-8%)2 108 (+/-8%)0

Composition of Poly(LPDE) :

Poly thickness (mm) 0.0375 0.05
Tolerance (mm) +/-5% 0.001875 0.0025
Poly weight (gsm) 34.04+/-5% 46+/-5%
Bursting Strength -Laminate(kg/cm2) 2.4 2.9

For all Aluminium Foil Thickness

Composition :

Aluminium Foil Alloy AA 1200 /AA 1235 /AA8011
Aluminium Foil Finish Matt /Bright
Temper (Soft / Hard) Soft
Bond Strength 200 grams/ 15 mm (min.)
Lamination Surface Matt / Bright
Sealing Strength 600 grams / 15 mm.
Sealing Surface LDPE to LDPE (Poly to poly)

Dimensions:

Reel Width( Unprinted , Printed) : 60 - 870 mm , 60 - 750 mm
Width Tolerance +/-0.5 mm
Core Material Aluminium / Plastic
Core Diameter 58/70/76 mm
Reel Diameter / Reel OD 230-300 mm (standard)
Reel OD Tolerance +/- 5 mm
Type of Joint Single Butt / Double Butt / Lap Joint
Type of Tape used for Joint Paper Tape/ Plastic Tape(Red, Brown or Black colour)

Properties of Printed Side:

Colour: 1-5
Ink Adhesion Test No ink lifting
Printing Surface Matt /Bright (non LDPE side)
Repeat Length Tolerance +/- 0.5 mm
Registration Tolerance +/- 0.5 mm
Printing As per design / artwork.
Print Primer 0.25 gsm max.
Other Abrasion, water and heat resistant

Recommended Operating Conditions:

Temperature ( deg. C) 150 deg C
Dwell Time 0.5 seconds (min.)

Notes :

  1. Above mentioned specifications are standard specifications. We also offer tailor made specifications as per customers requirement i.e. different combinations of foil and LDPE (poly) / HSL (heat seal lacquer).
  2. In case of Printed Designs, customer need to specify unwinding direction and supply design / artwork of printed designs with colour scheme in soft or hard form.
  3. Normal packing of the product is corrugated cartons / wooden case / Pallets etc. Customer to specify their packing requirements.

Standard Specifications of Aluminium Strip Foil (Foil / HSL) :

Composition of Aluminium :

Thickness of Aluminum Foil(in mm , in micron) 0.030 , 30 0.040 , 40
Thickness Tolerance ( +/-8%)(in mm) +/- 0 .0024 +/- 0.0032
Al. Foil weight (gsm) 81(+/-8%) 108 (+/-8%)
Pinholes in Al. (no/sqm) max. 2 0

Composition of Heat Seal lacquer(HSL)

HSL grammage(in gsm i.e. grams per sq.mtrs) 4 -6 4 -6

For all Aluminium Foil Thickness

Composition :

Aluminium Foil Alloy AA 1200 /AA 1235 /AA8011
Aluminium Foil Finish Matt /Bright
Temper (Soft / Hard) Soft
HSL Coating Surface Matt / Bright
Sealing Strength 450 grams / 15 mm (min)
Sealing Surface HSL to HSL

Dimensions:

Reel Width( Unprinted , Printed) : 60 - 900 mm , 60-750 mm
Width Tolerance +/-0.5 mm
Core Material Aluminium / Plastic
Core Diameter 58/70/76 mm
Reel Diameter / Reel OD 230-300 mm (standard)
Reel OD Tolerance +/- 5 mm
Type of Joint Single Butt / Double Butt / Lap Joint
Type of Tape used for Joint Paper Tape/ Plastic Tape(Red, Brown or Black colour)

Properties of Printed Side

Colour: 1-5
Ink Adhesion Test No ink lifting
Printing Surface Matt /Bright (non LDPE side)
Repeat Length Tolerance +/- 0.5 mm
Registration Tolerance +/- 0.5 mm
Printing As per design / artwork.
Print Primer 0.25 gsm max.
Other Abrasion, water and heat resistant

Recommended Operating Conditions:

Temperature ( deg. C) 190 deg C
Dwell Time 0.5 seconds (min.)

Notes :

  1. Above mentioned specifications are standard specifications. We also offer tailor made specifications as per customers requirement i.e. different combinations of foil and LDPE (poly) / HSL (heat seal lacquer).
  2. In case of Printed Designs, customer need to specify unwinding direction and supply design / artwork of printed designs with colour scheme in soft or hard form.
  3. Normal packing of the product is corrugated cartons / wooden case / Pallets etc. Customer to specify their packing requirements.
